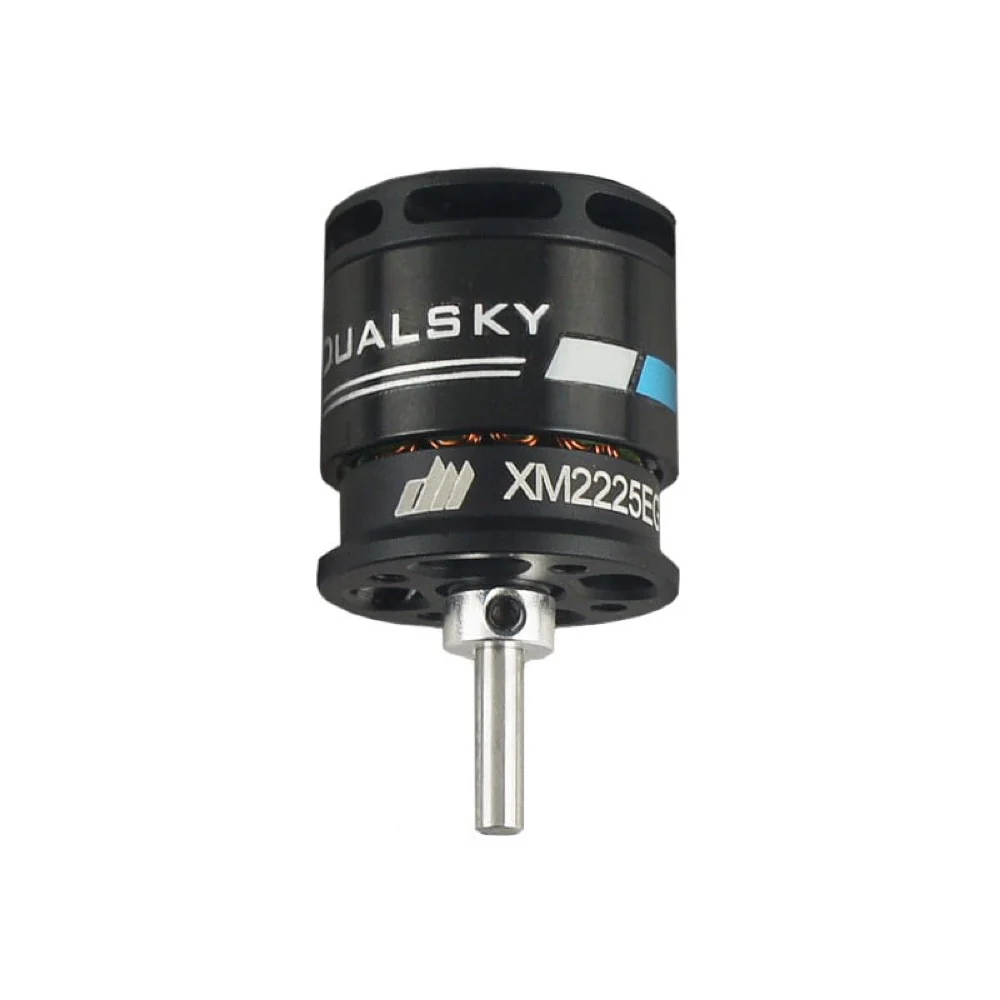

Dualsky XM2225EG-23 1600kv Brushless Glider Motor

This Dualsky XM2225EG-23 1600kv Brushless Motor is designed for small RC gliders.

Features

• 14 pole arc magnets providing strong direct drive torque
• Precision rotor balancing technology features NMB bearing capable of up to 30000rpm
• Shaft design increases the 'survival rate' of motor when landing

Specification

• RPM / V: 1600 kv
• Weight: 32 g
• Diameter: 22.4 mm
• Length: 24.4 mm
• Diameter of Shaft: 3 mm
• Pitch of Holes: 16 / 16 mm
• Input Connectors: GC2.0 3 pairs
• Slots & Poles: 12N14P
• Io @ 10V: 0.65 A
• Resistance (Ri) (mOhm): 115
• No of Cells: 2 - 3 S LiPo
• Max. Efficiency Current: 9 A
• Max. Burst Current: 18 A
• Max. Power (15S): 200 W
• Torque (mNM): 133
• Recommended ESC: XC-22U-Lite (15o)
• Propeller: 2S: 9x5, 9x6, 10x6
• 3S: 7x4, 8x4, 8x5
• Applications: F5K / RES
