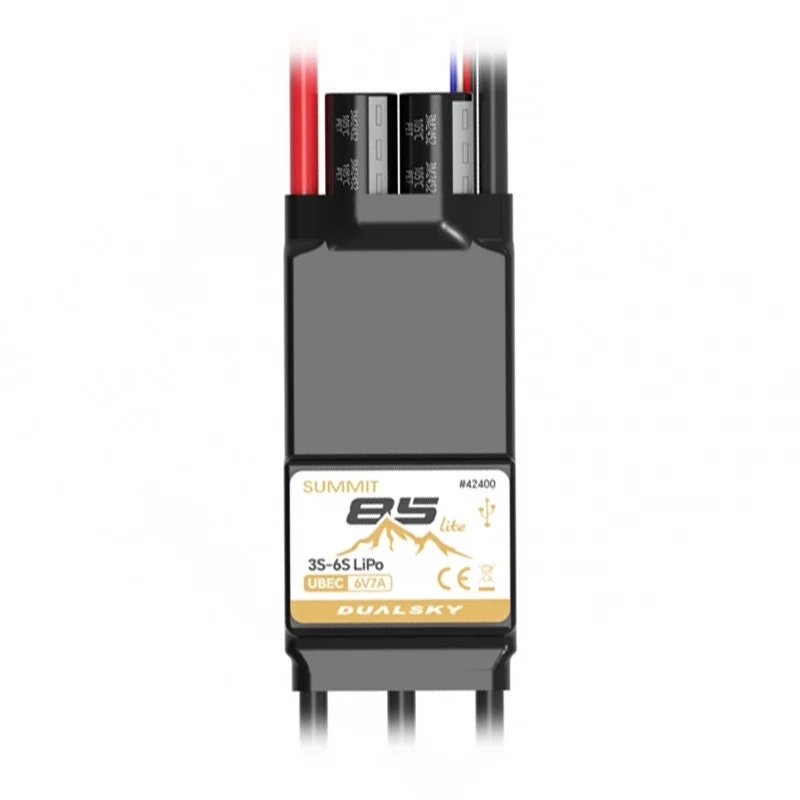

Dualsky Summit Lite 85A 3S-6S ESC

This Dualsky Summit 85A Lite 3S-6S ESC is designed for models requiring a high-current ESC output, such as 3D aircraft or EDF jets with landing gear and/ or lighting systems. Each ESC in this series is programmable with the Dualsky USB Link Multi Purpose (DSB22382, sold separately).

Features

• A new generation of cost-effective 32-bit ARM electric drive systems

• Drive frequency up to 48MHZ

• Maximum speed up to 510k eRPM

• Multilayer low internal resistance PCB motherboard an excellent heat dissipation substrate

• Implemented multiple protection: throttle, voltage, current, temperature, and low RPM

• Provides sufficient power supply to 3D aircraft, EDF jets, landing gear, and lighting systems

• Integrated high-current UBEC

• Excellent peak performance

• Effectively avoids Sync-Loss conditions

• Supports Dualsky GA series 28-pole motors

• Supports SINE wave mode, with efficiency up to 5%

• Supports regenerative braking

• Selectable rotation direction

• Supports bidirectional operation mode

• In addition to PWM throttle signal, it also supports Multishot, Oneshot, Dshot and Proshot protocols with Dualsky TELElink (not included)

• 100% load test passed, in line with ISO9001:2015 quality system

• Programmable with Dualsky USB Link MP and PC programming software
